I couldn't believe it, I placed a punt bid on this, no-one else bid on it, so I won. I already have the eMac, so this is a nice addition to the collection, but I still don't understand the appeal
It's an Apple Macintosh SE FDHD which originally came out in March 1987, although the FDHD model I have here came out in August 1989. The FDHD (Floppy Disk High Density) is what Apple calls the SuperDrive which can handle the new-fangled 1.44 MB High Density disks

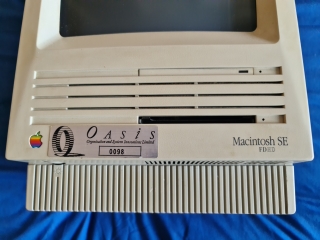

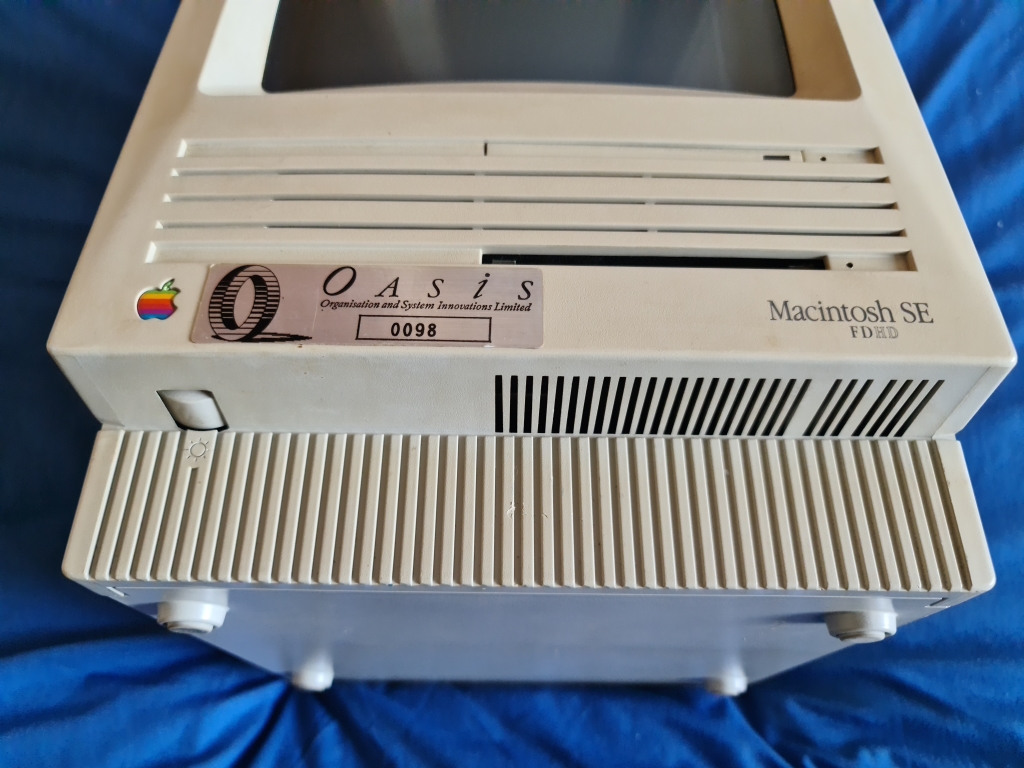

A similar form-factor to previous Macs, this one has the same B&W nine inch CRT with a resolution of 512 x 342, also there are now two drive bays, you can see the SuperDrive, but above that is another bay which contains the 40 MB hard disc. The brightness control is under the CRT on the left

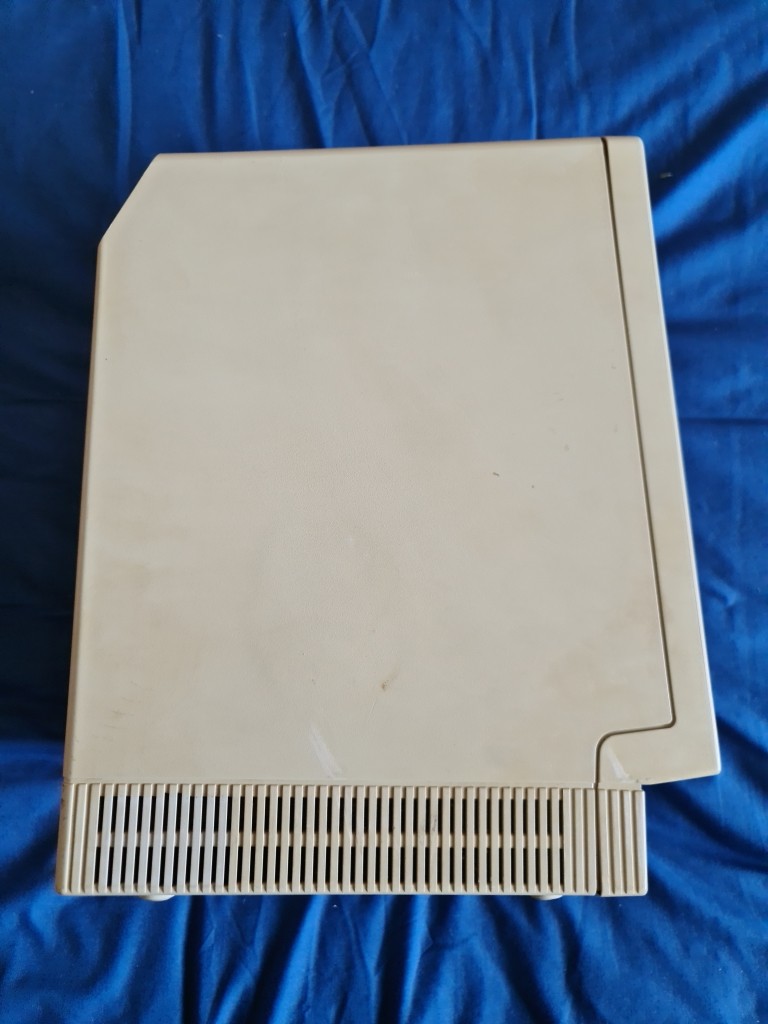

The sides are plain, the Reset and Interrupt buttons are no longer fitted

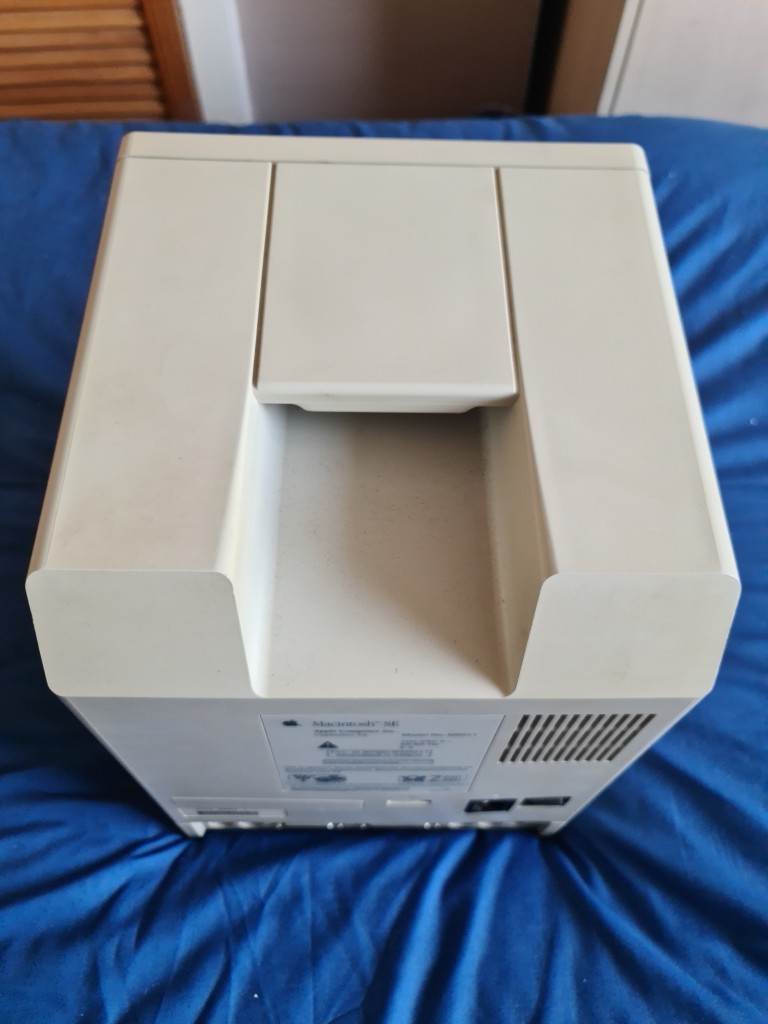

The top has the carrying handle, the whole unit isn't very heavy at all, and the bottom has four rubber feet

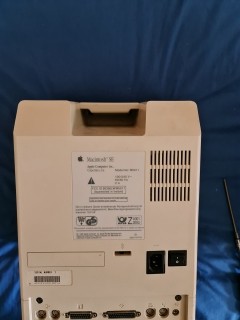

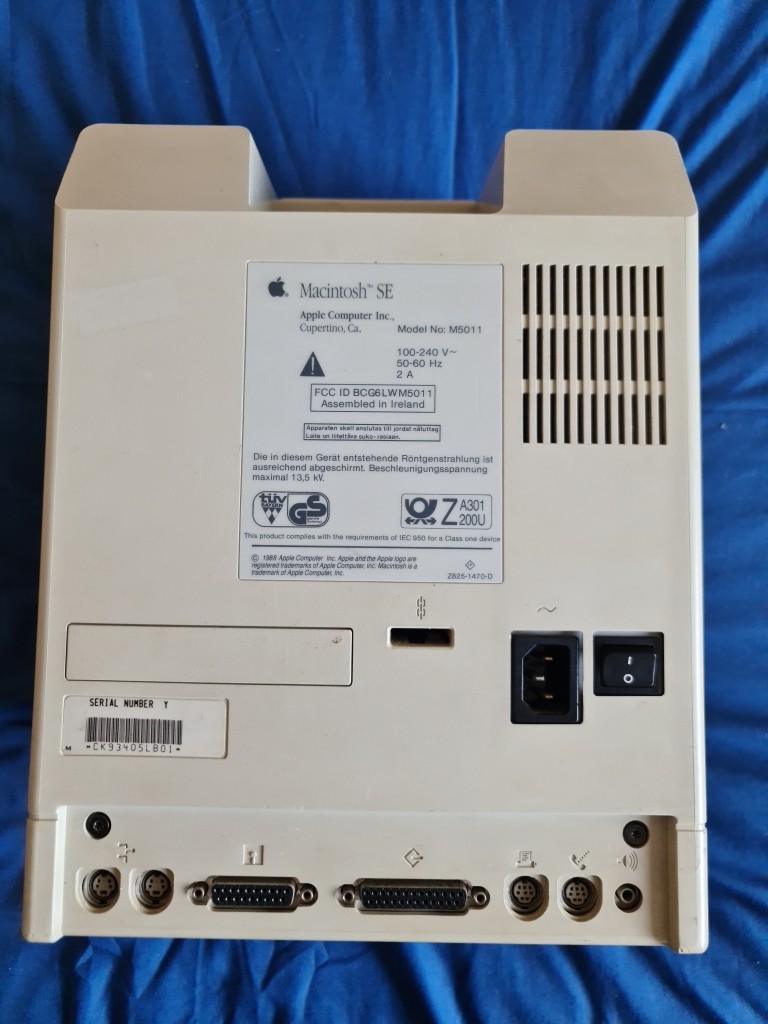

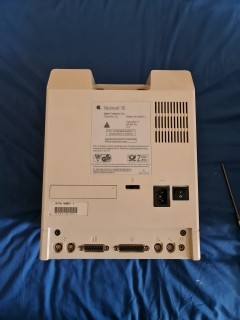

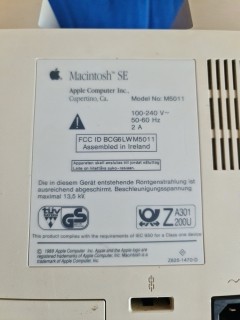

On the rear of the unit is the model and serial number labels, power lead socket and switch

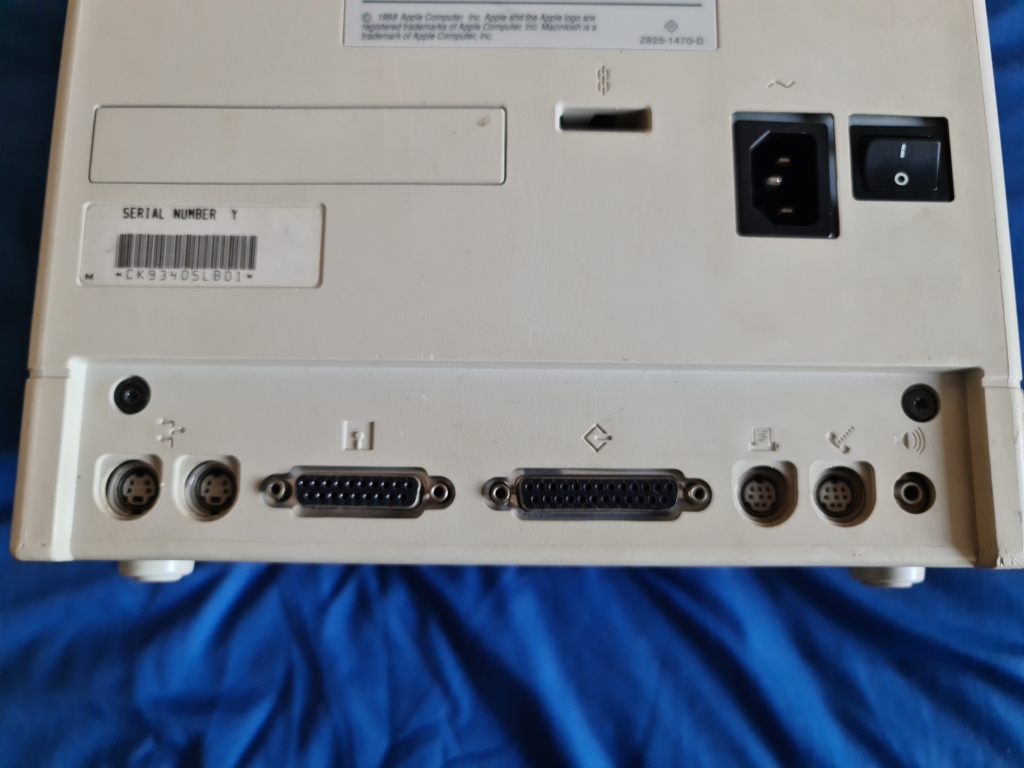

Ports wise it has two ADB (Apple Desktop Bus) sockets, an external disc drive port, SCSI port, and printer, modem, and external speaker sockets

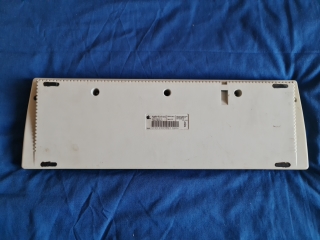

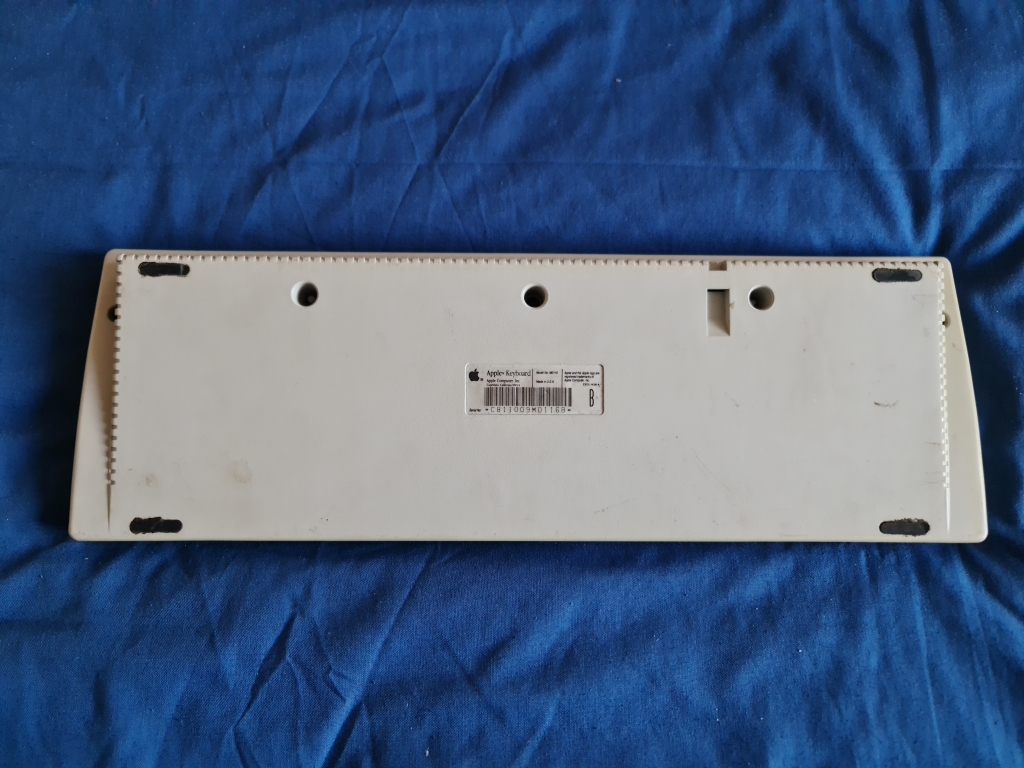

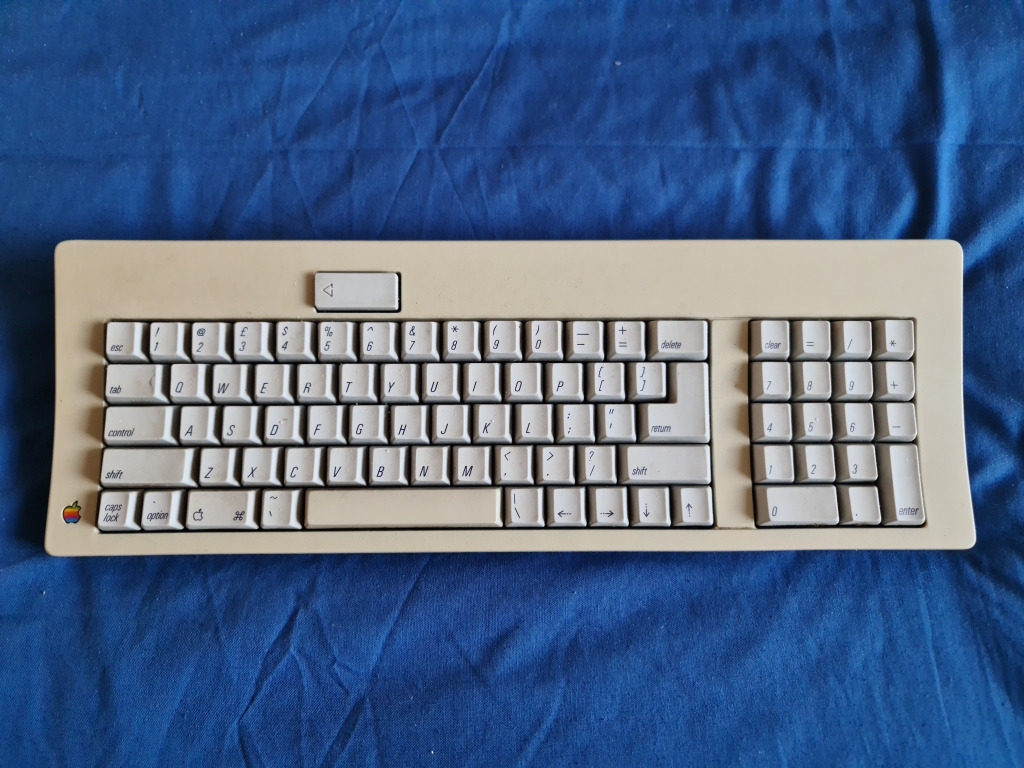

This is the Apple Standard Keyboard, it has a detachable lead, and the mouse plugs into the keyboard, the large button at the top is a power button

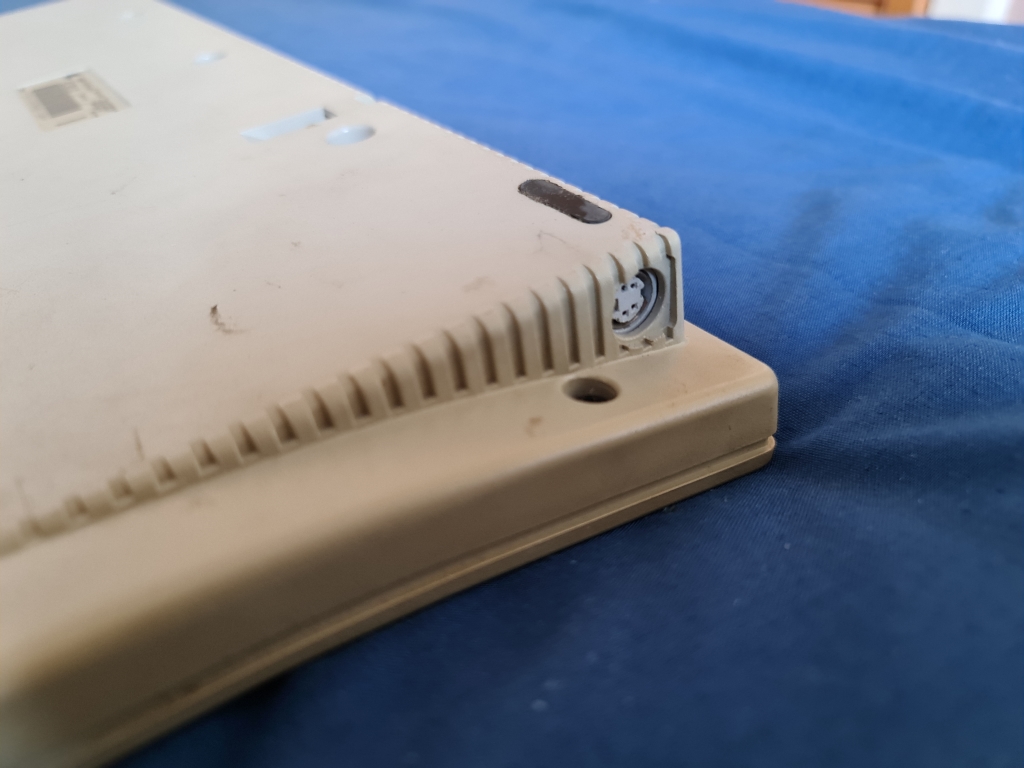

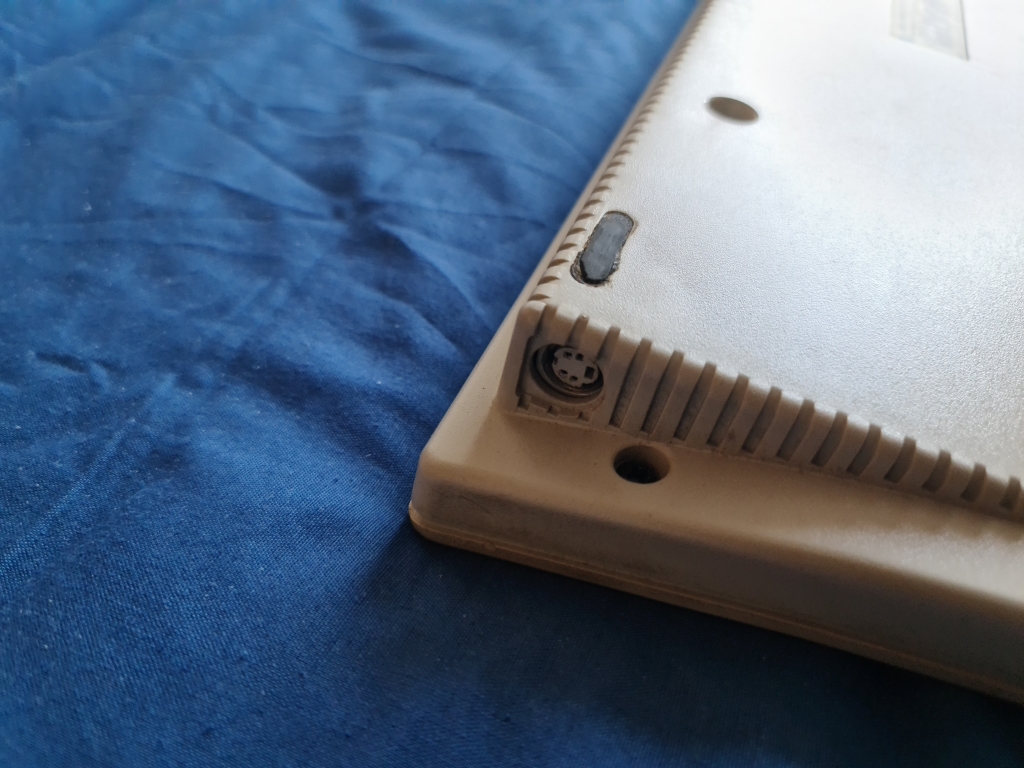

The two ADB sockets, one goes to the Mac, the other goes to the mouse

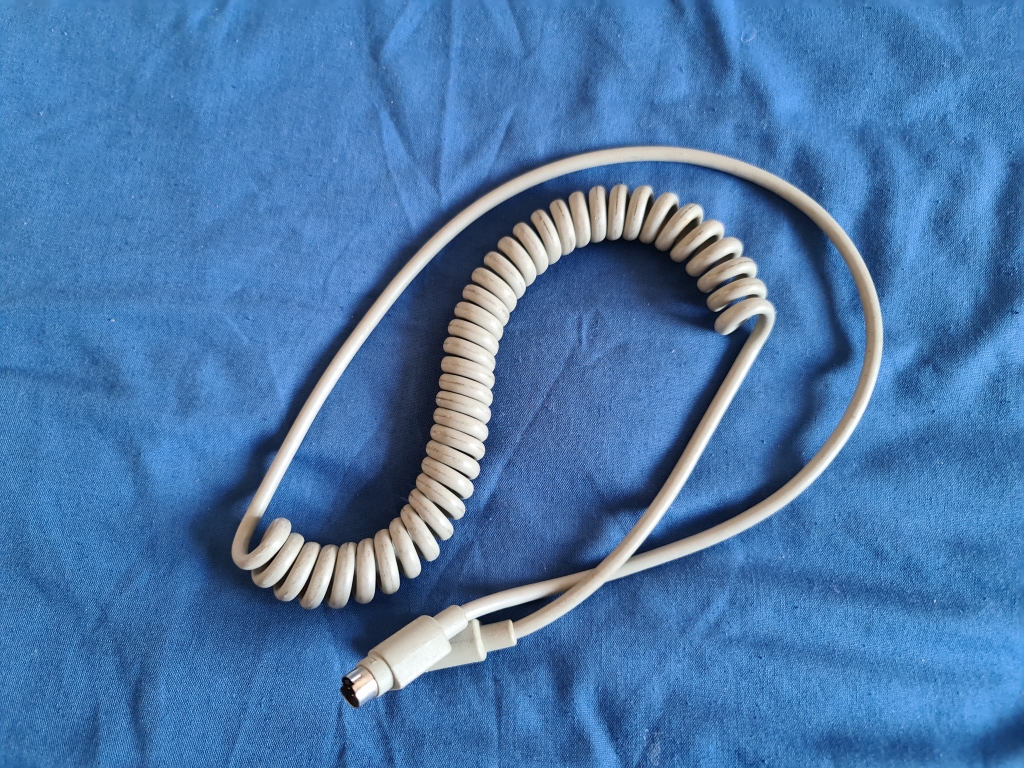

The coiled ADB keyboard lead

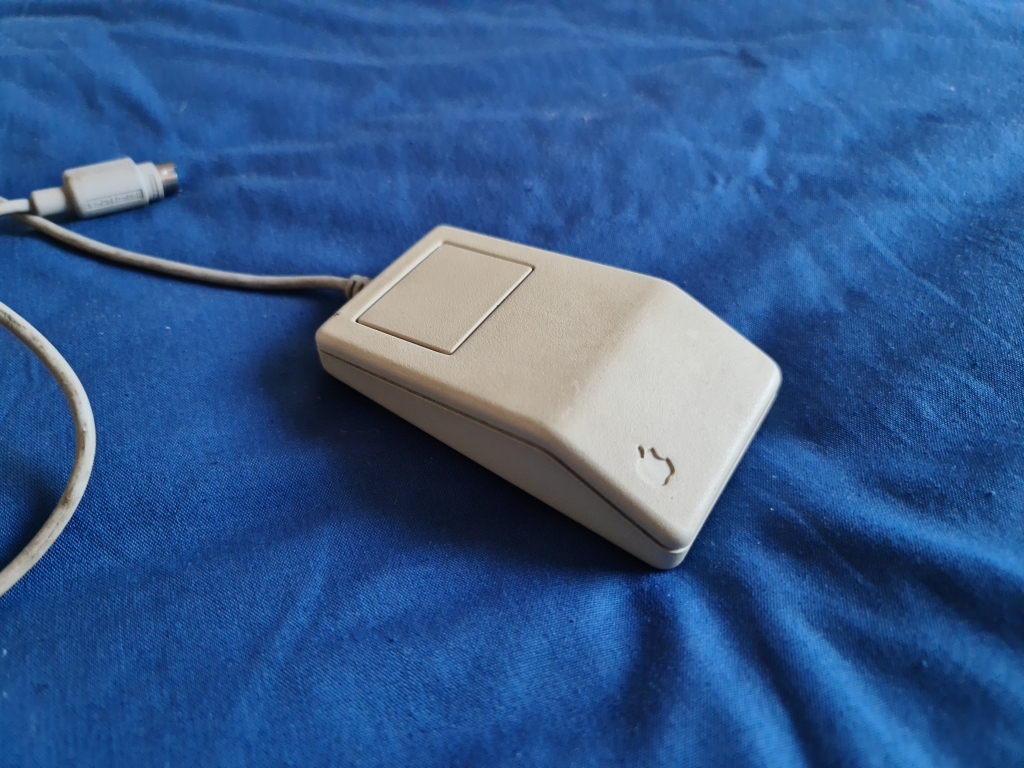

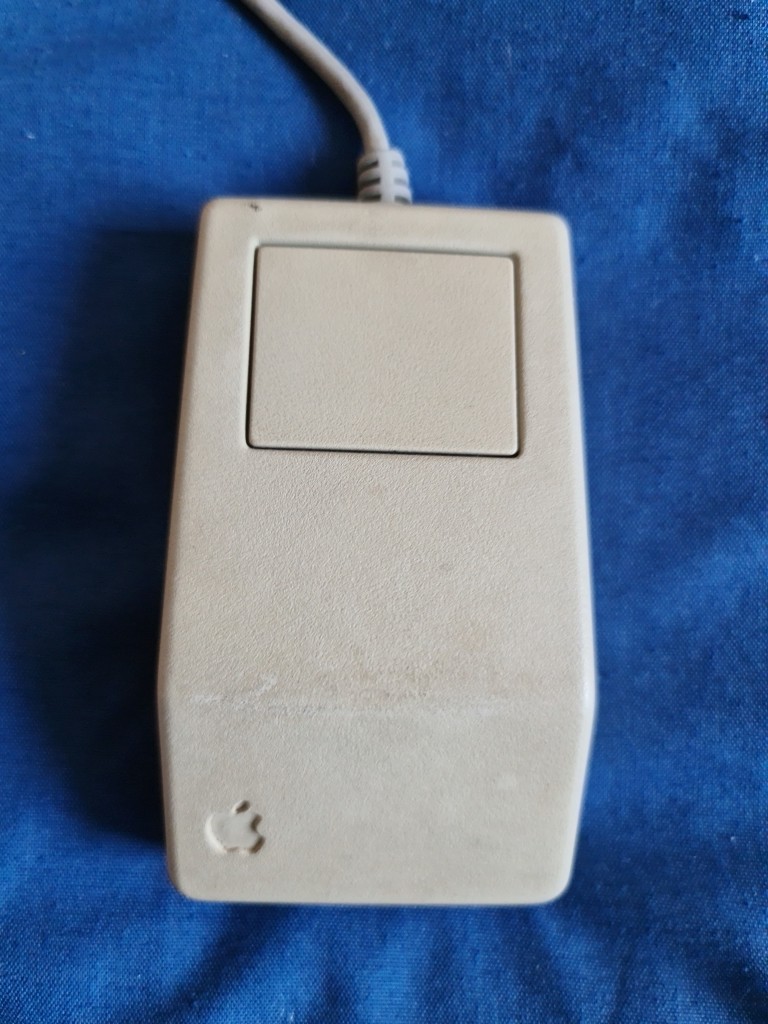

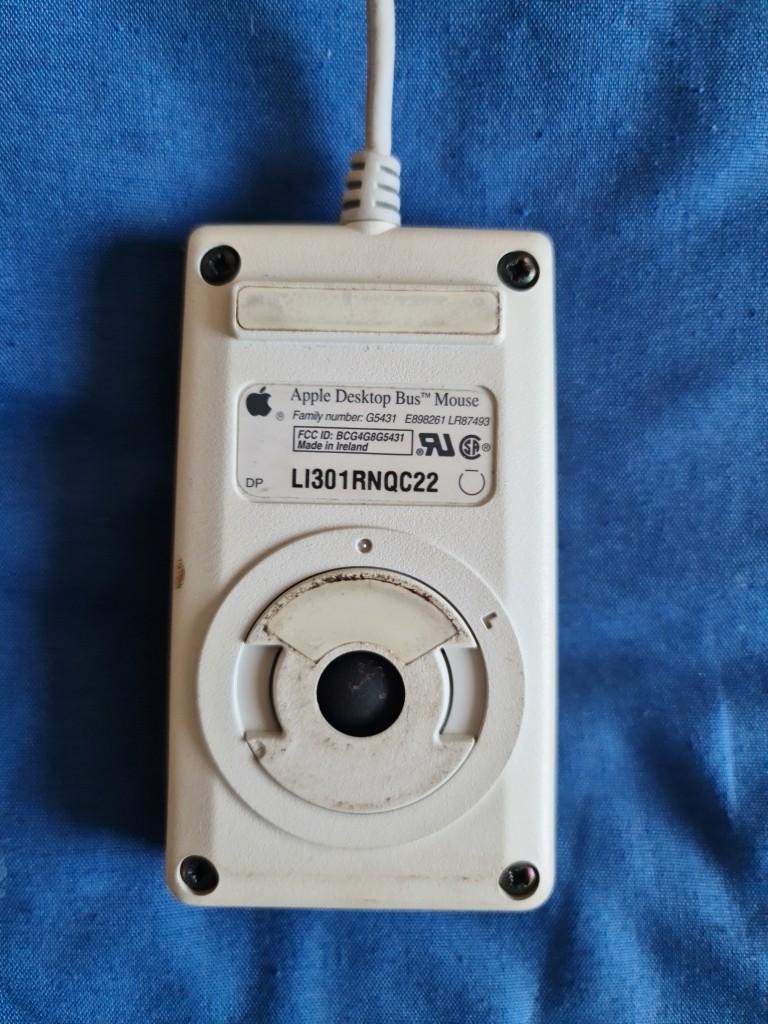

The Apple Desktop Bus Mouse, it's a ball mouse with one button

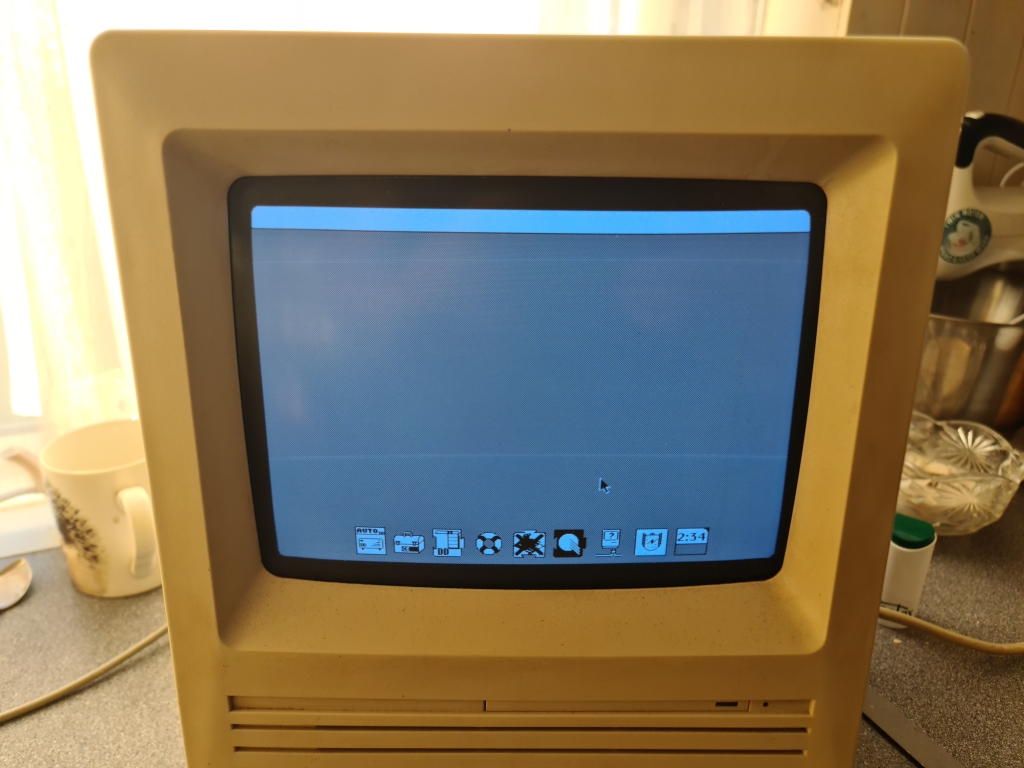

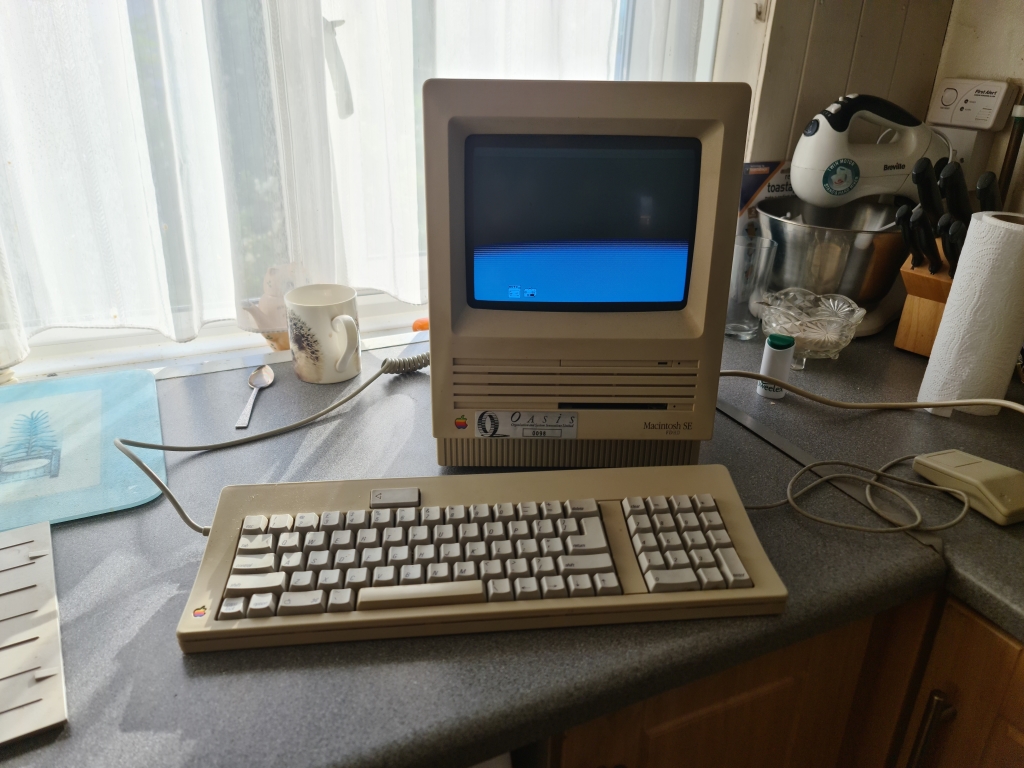

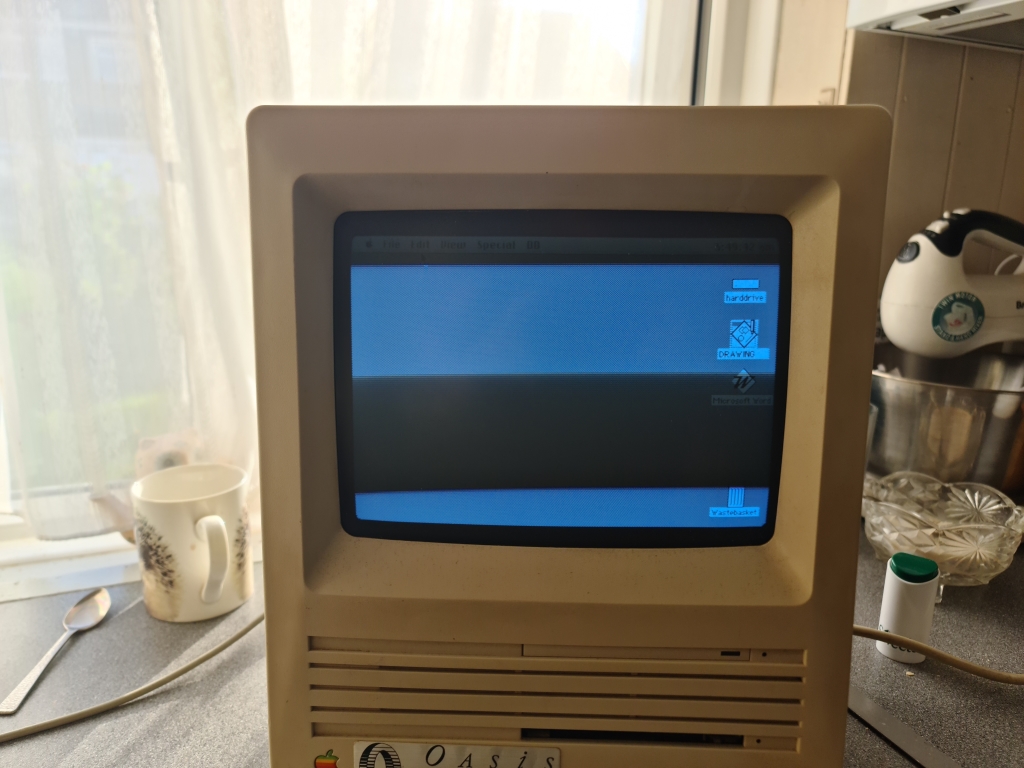

Time to power it up, and it booted into the desktop, although it seems to be impossible to get a picture with the screen on
Getting up close and personal seemed to work

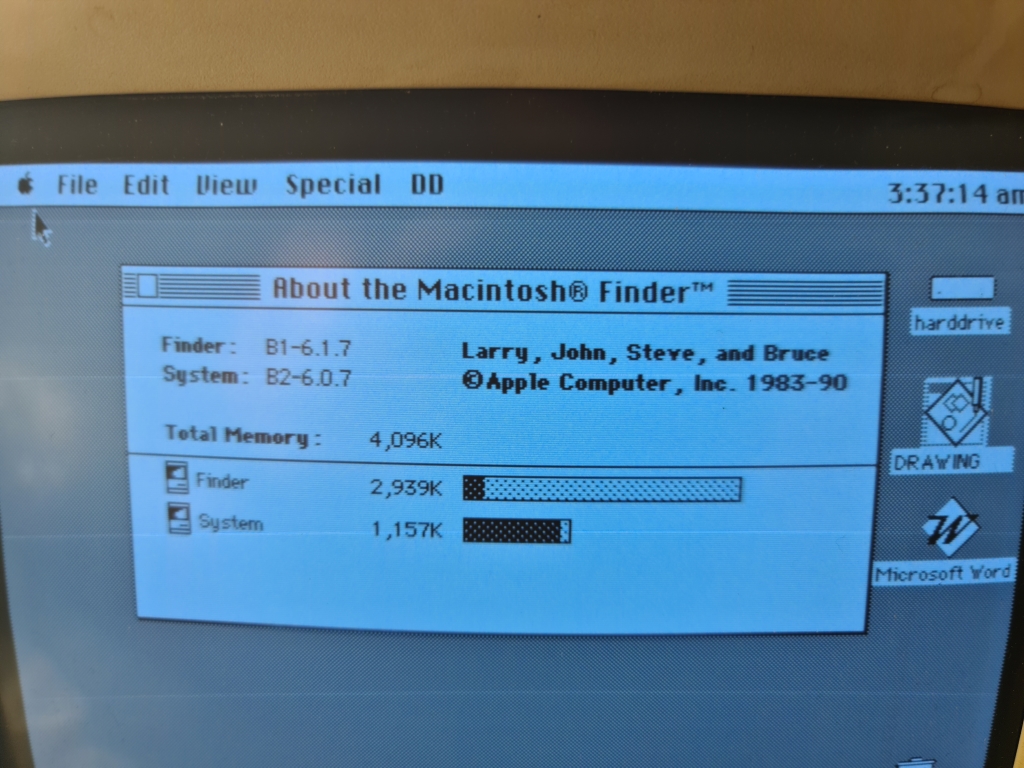

Here is the system information, perhaps this means something to someone

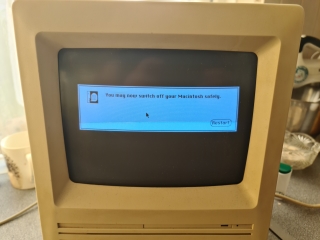

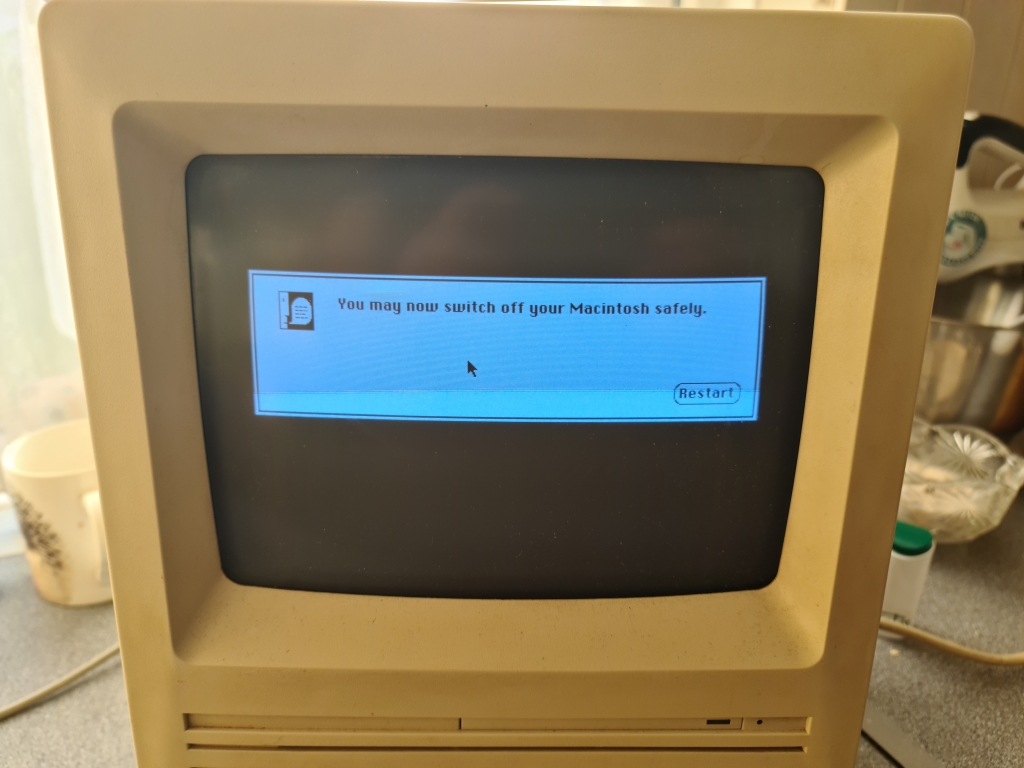

And it shuts down to a prompt to turn off the power, like the good old days of PC's
I got some documentation, but no restore discs

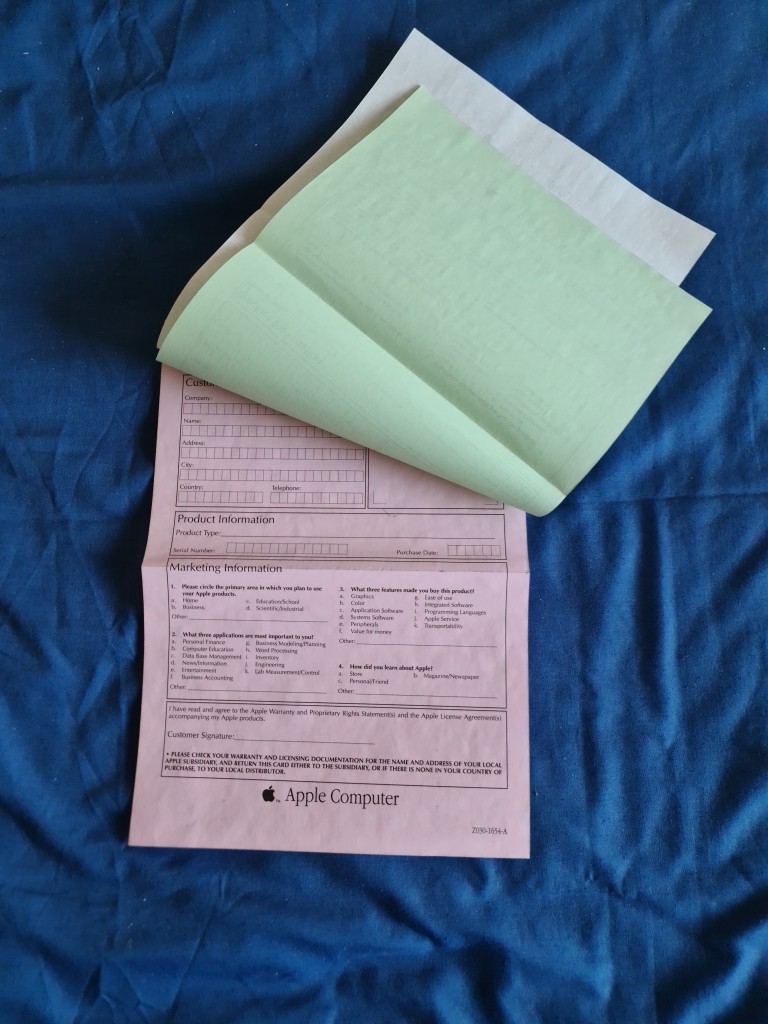

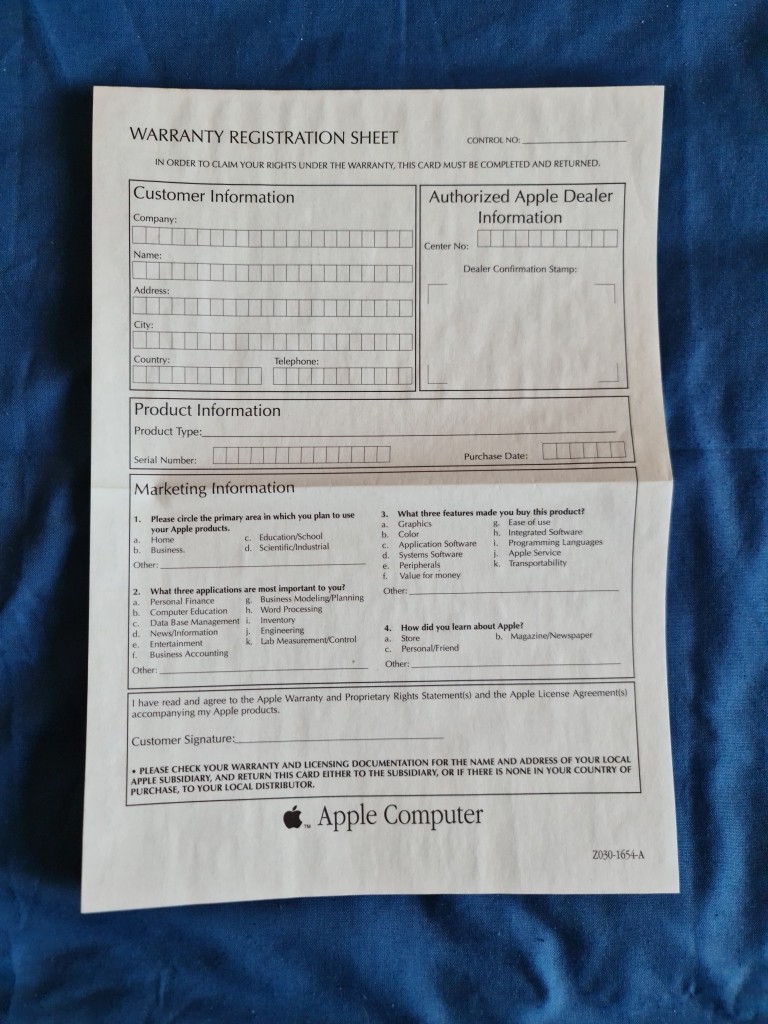

Look, this is a carbon copy form
I need to open this up ASAP and check the battery and caps for leakage

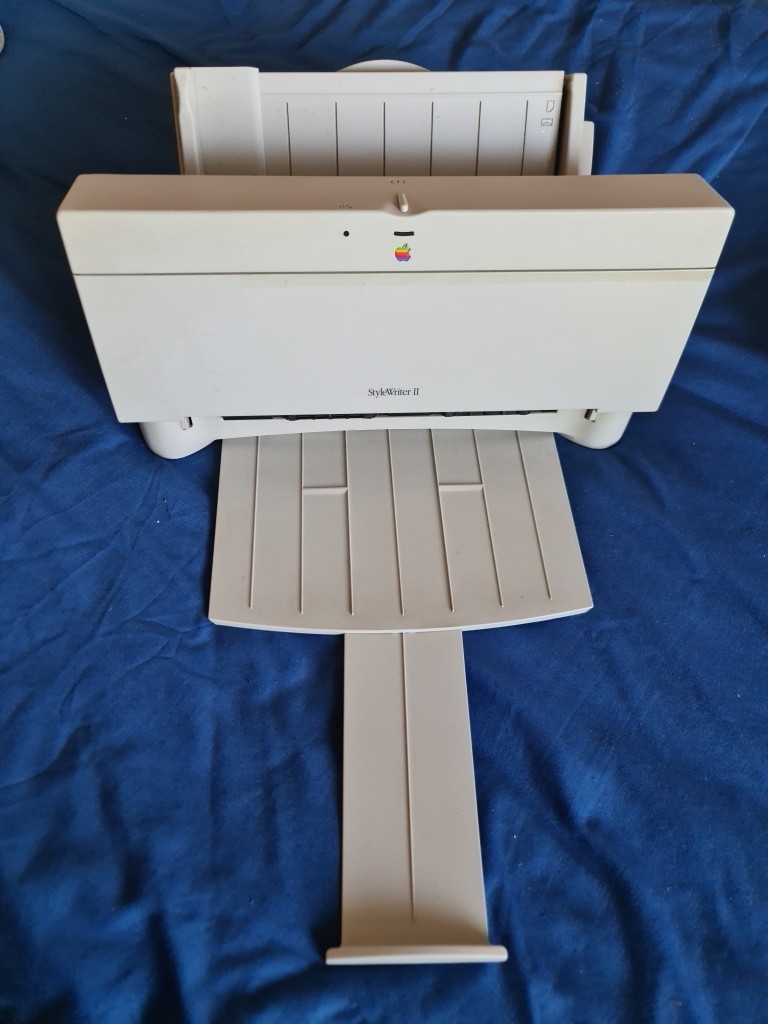

Apple StyleWriter II
This is Apple's 2nd ink jet printer, it's based on a Canon mechanism and was faster than it's predecessor

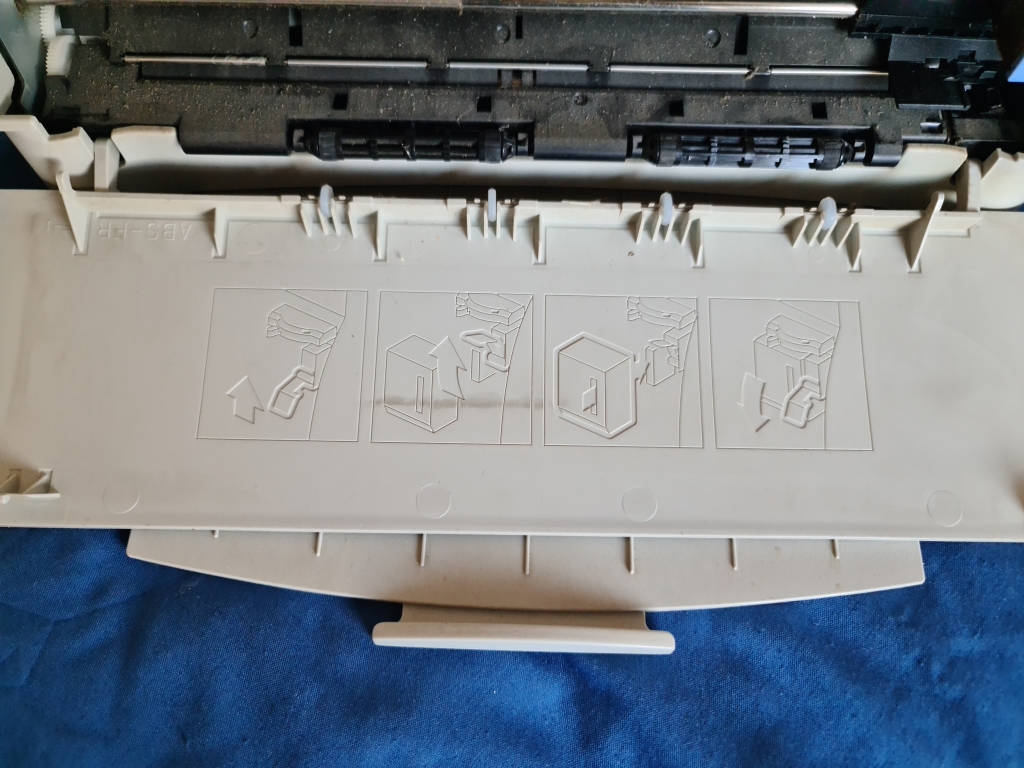

It has bits that slide out, neat!

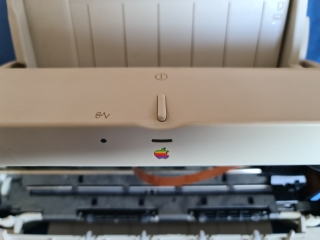

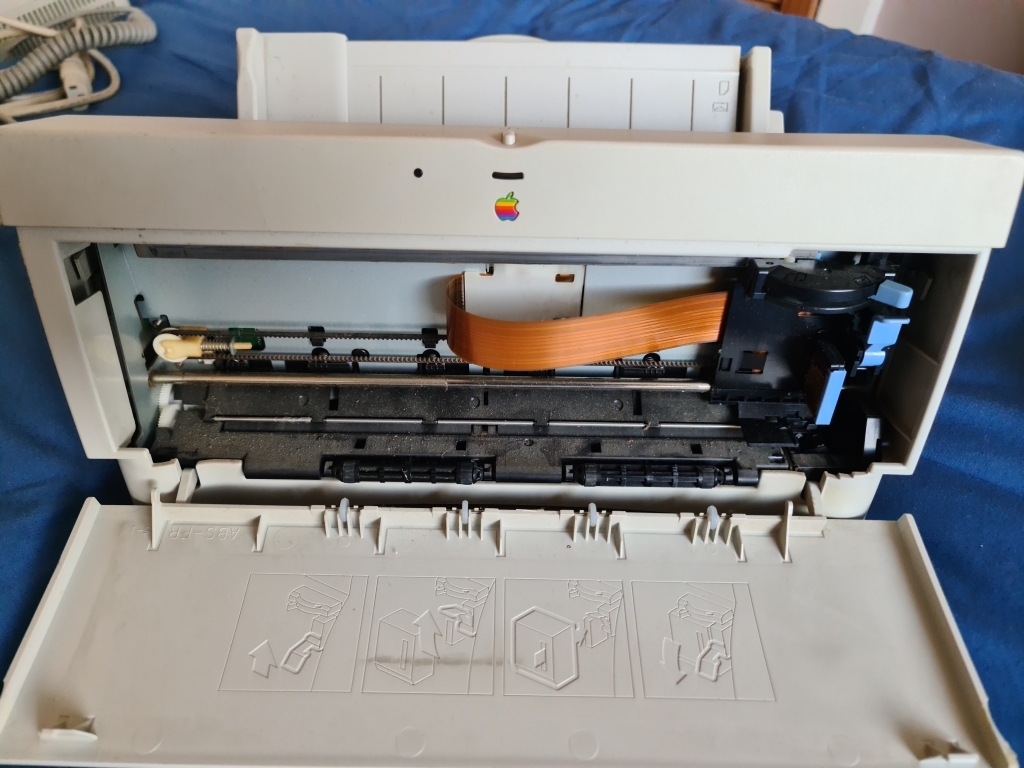

The mechanism and power button

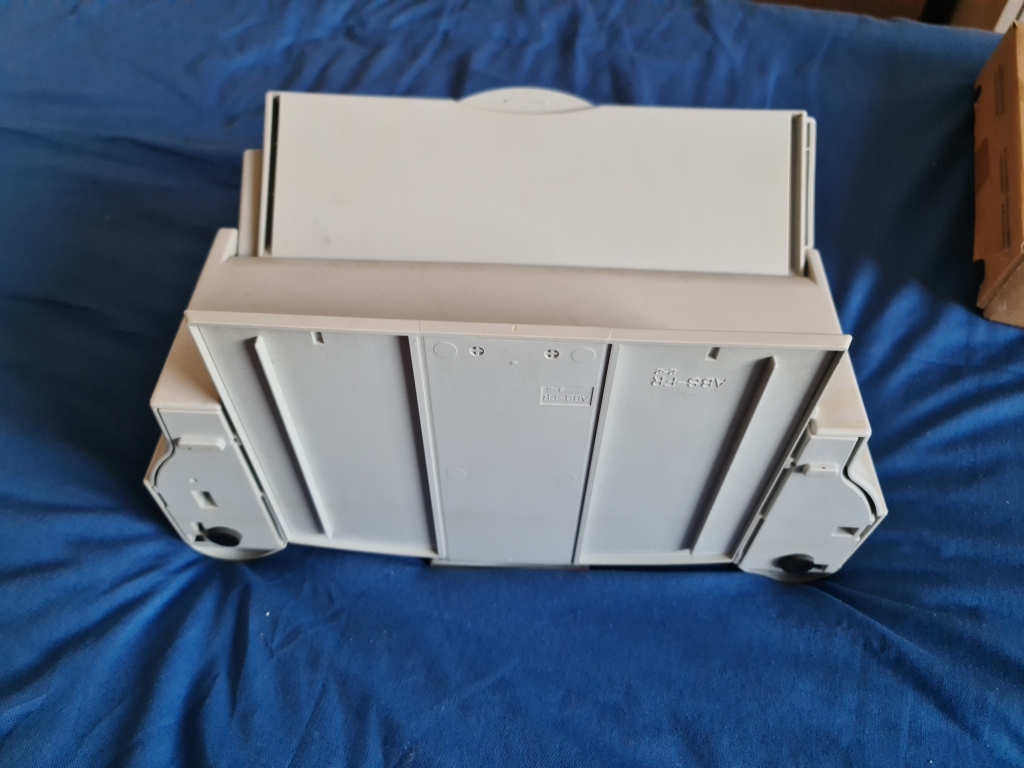

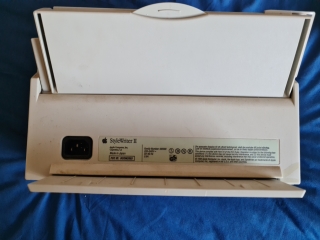

The rear and bottom of the machine

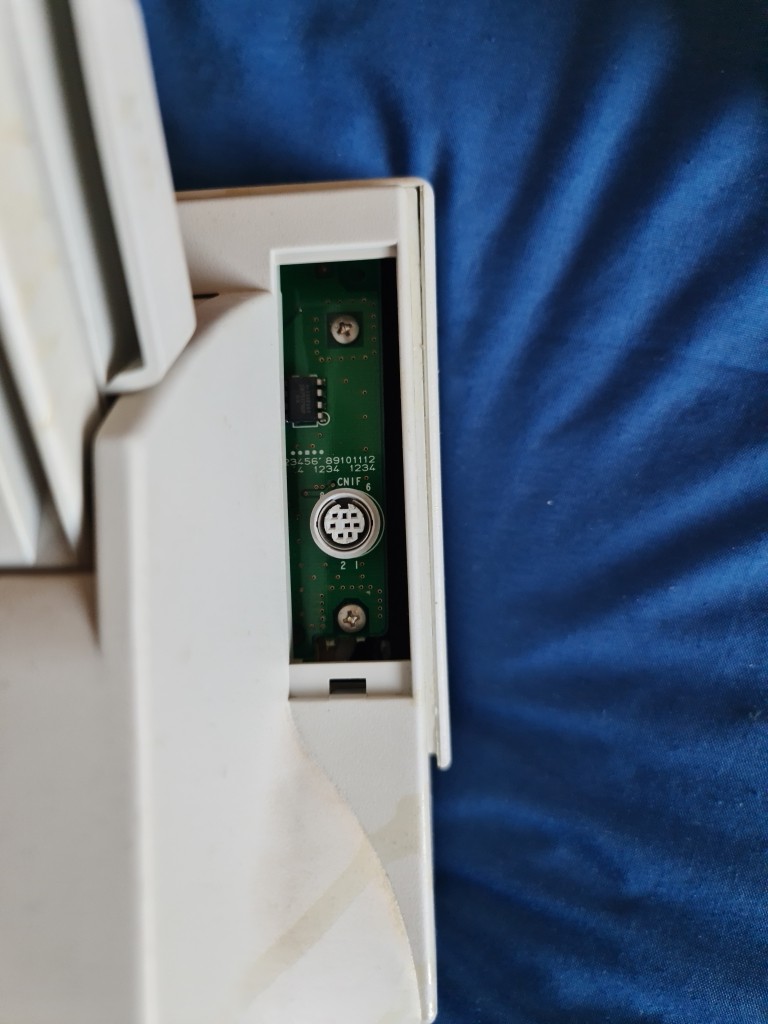

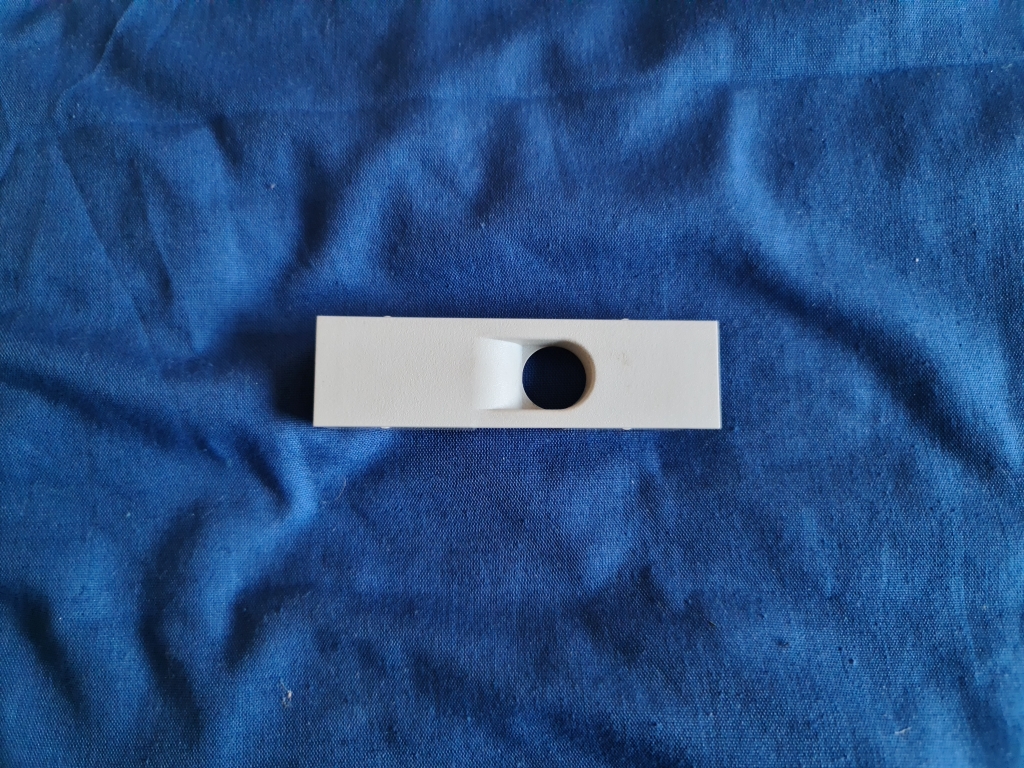

This is where it plugs in to the Mac, the cover has broke off, but I have it at least

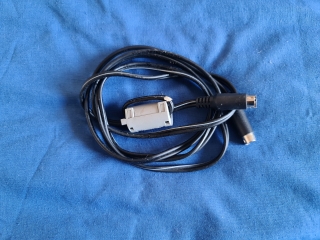

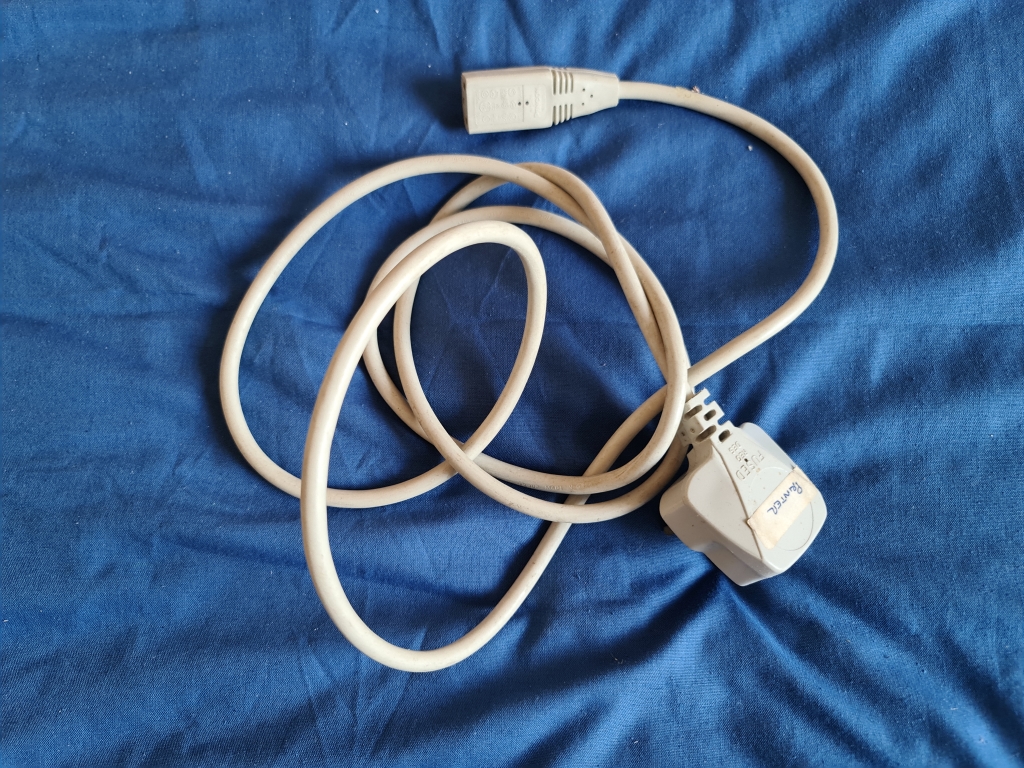

The power and serial leads

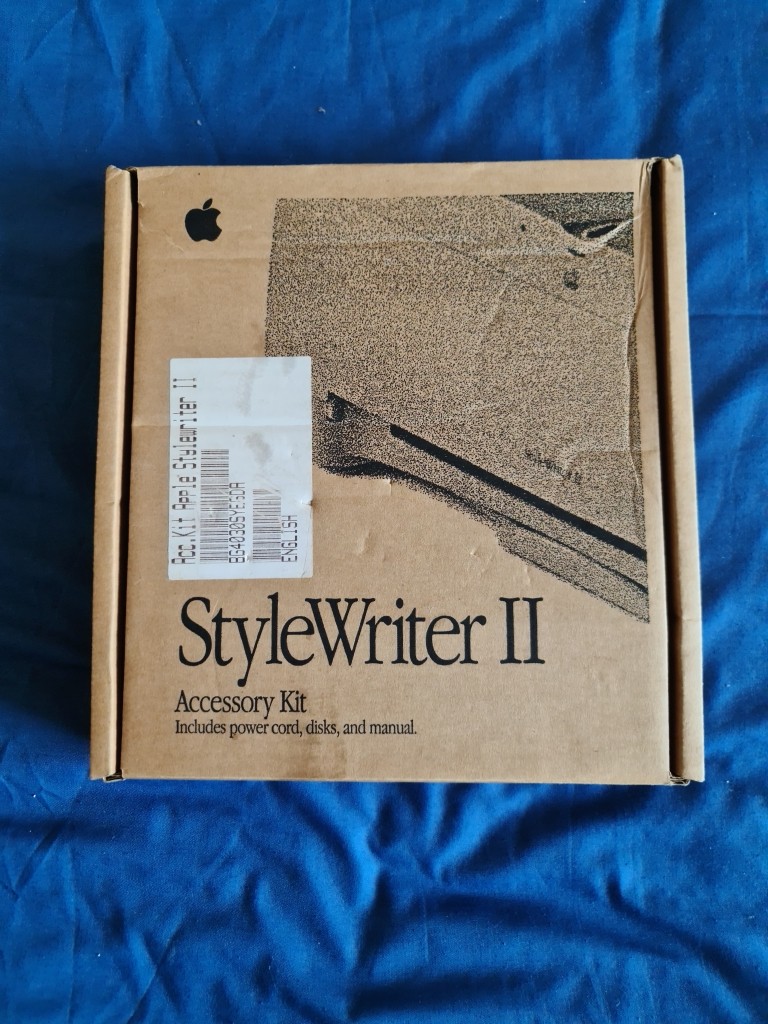

This is the box the documentation and software came in

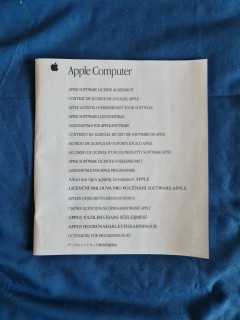

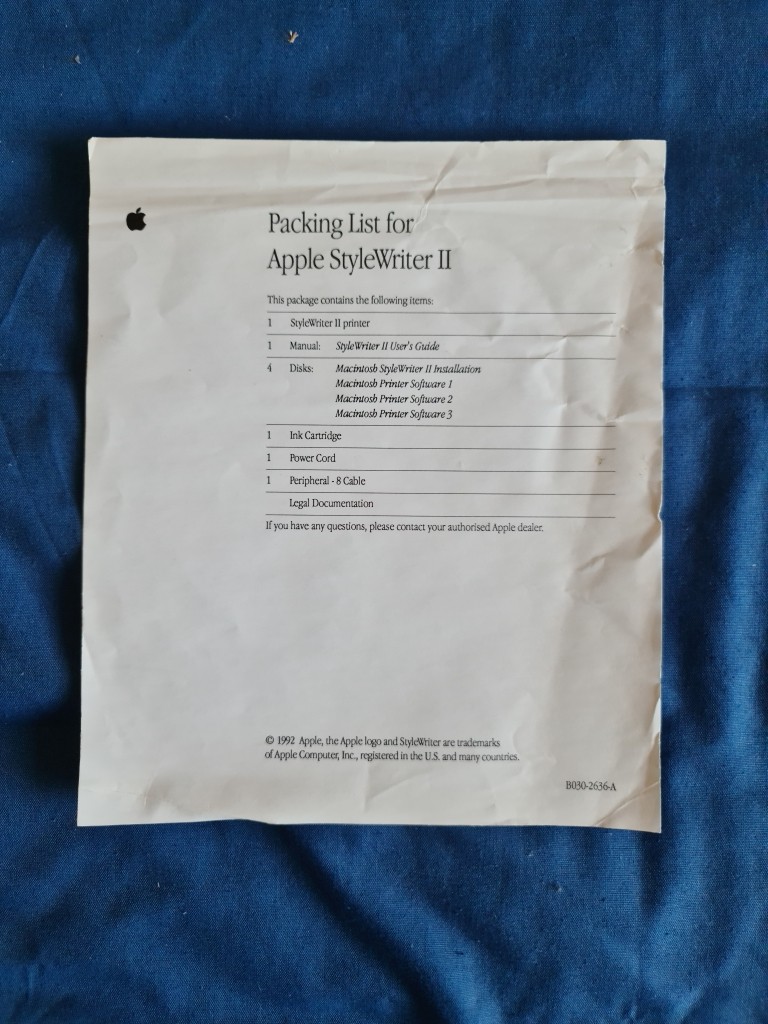

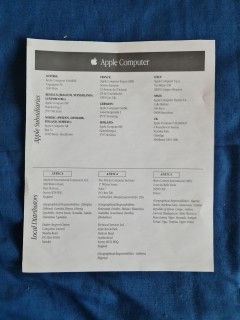

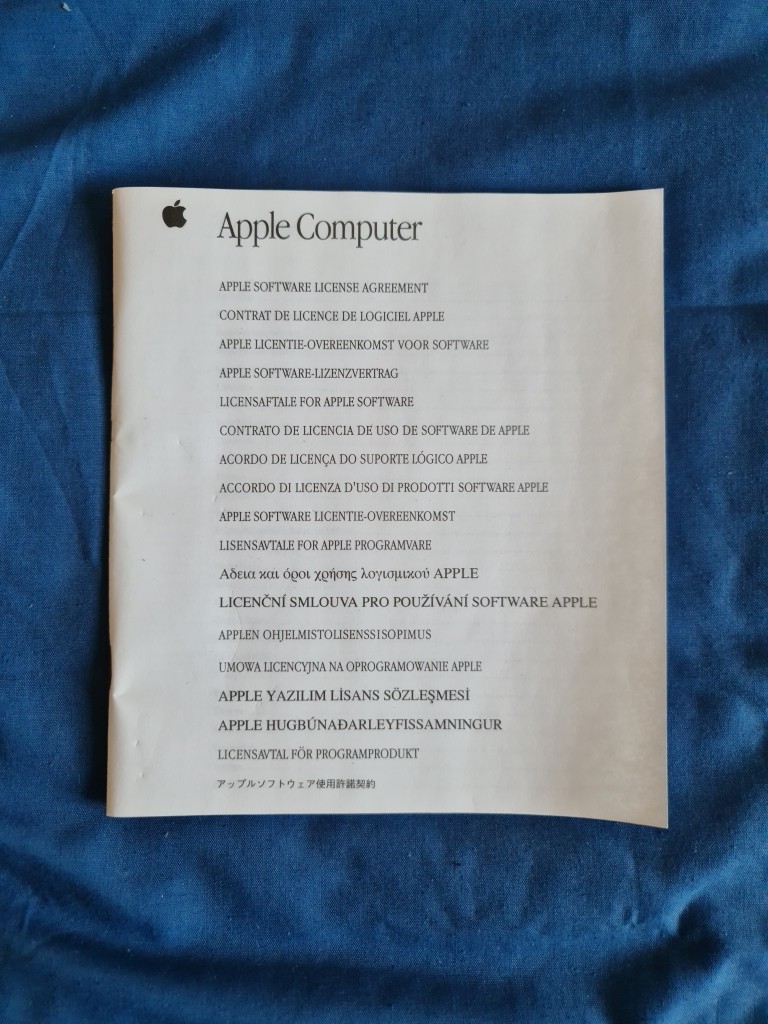

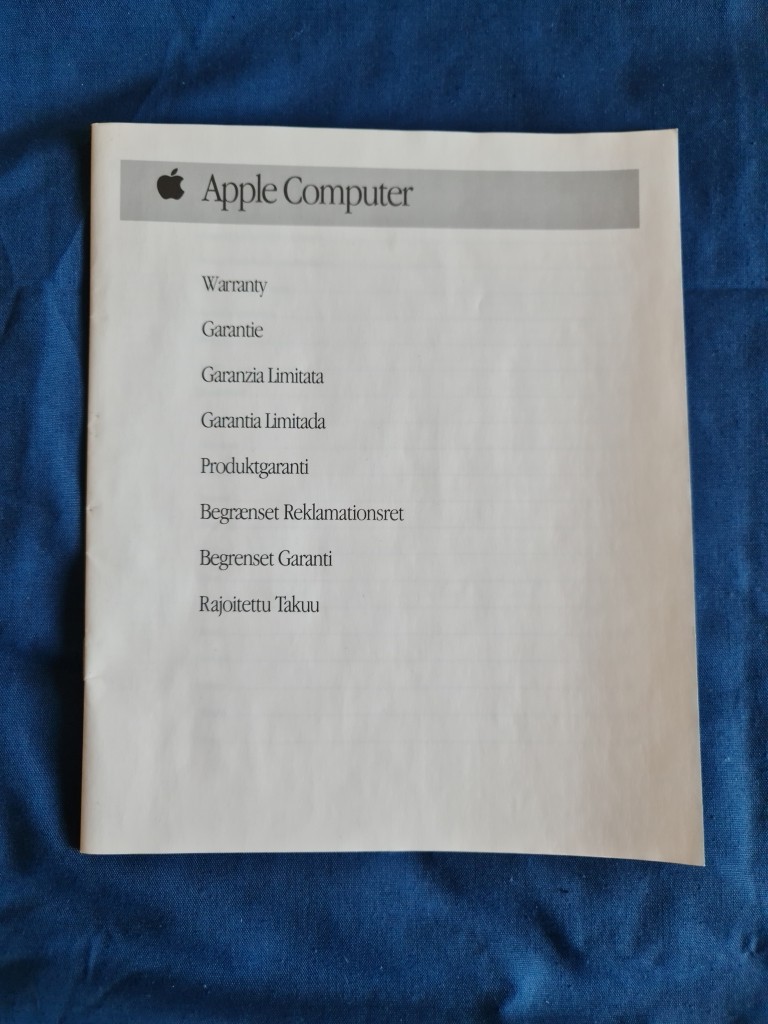

Documentation
Carrying case

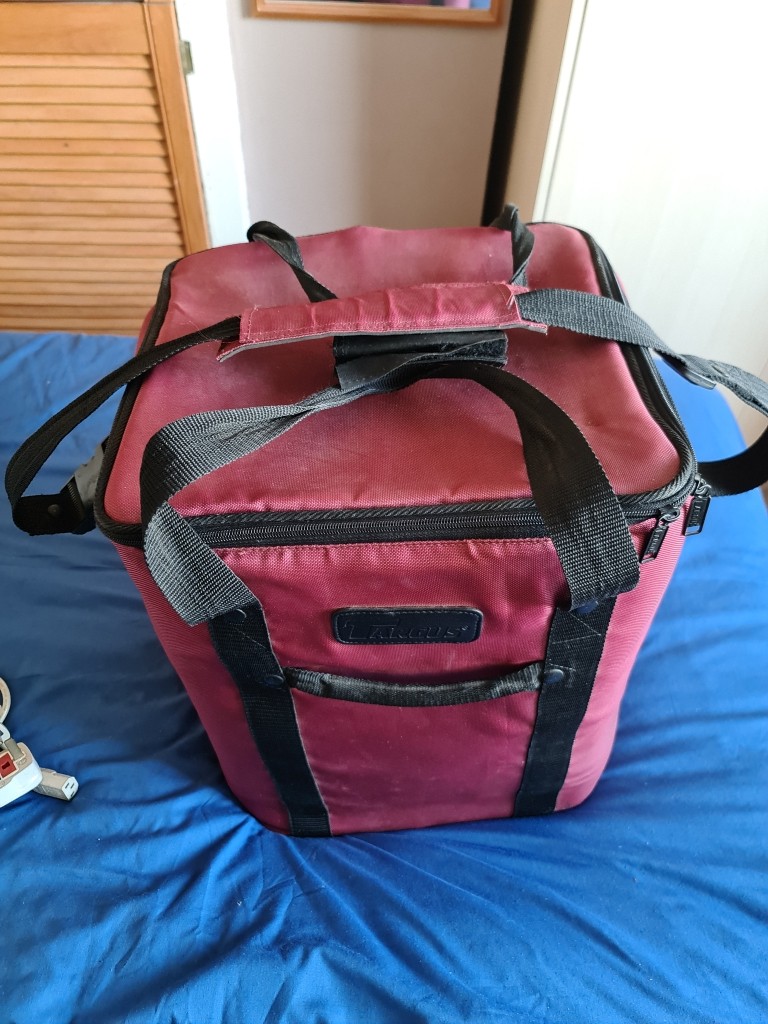

It all came with a Targus carrying case

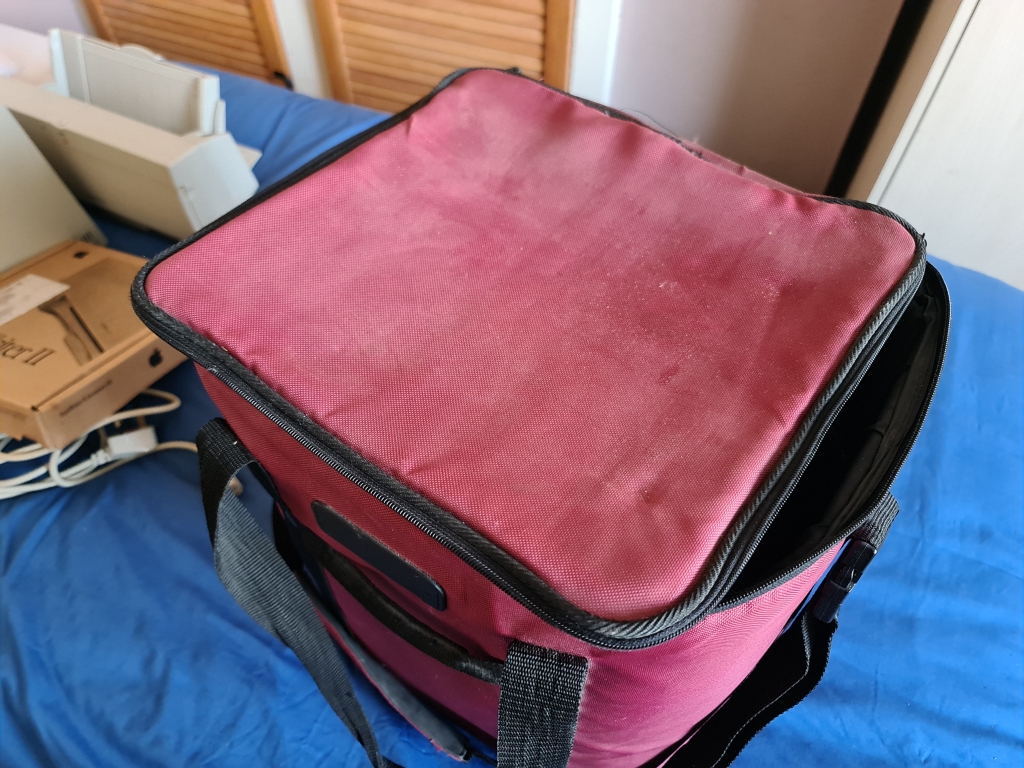

Pretty straightforward

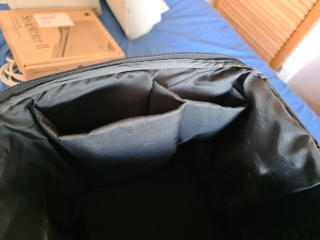

It has a compartment for the keyboard and mouse
A space for an ID card, and four heavy duty rubber feet

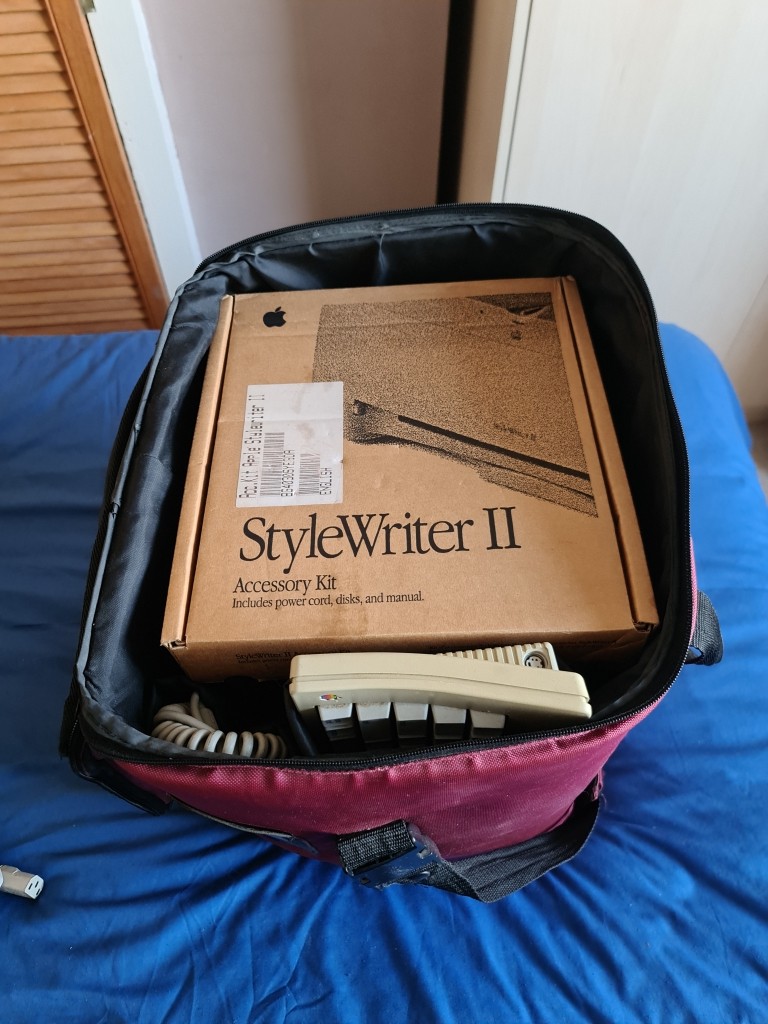

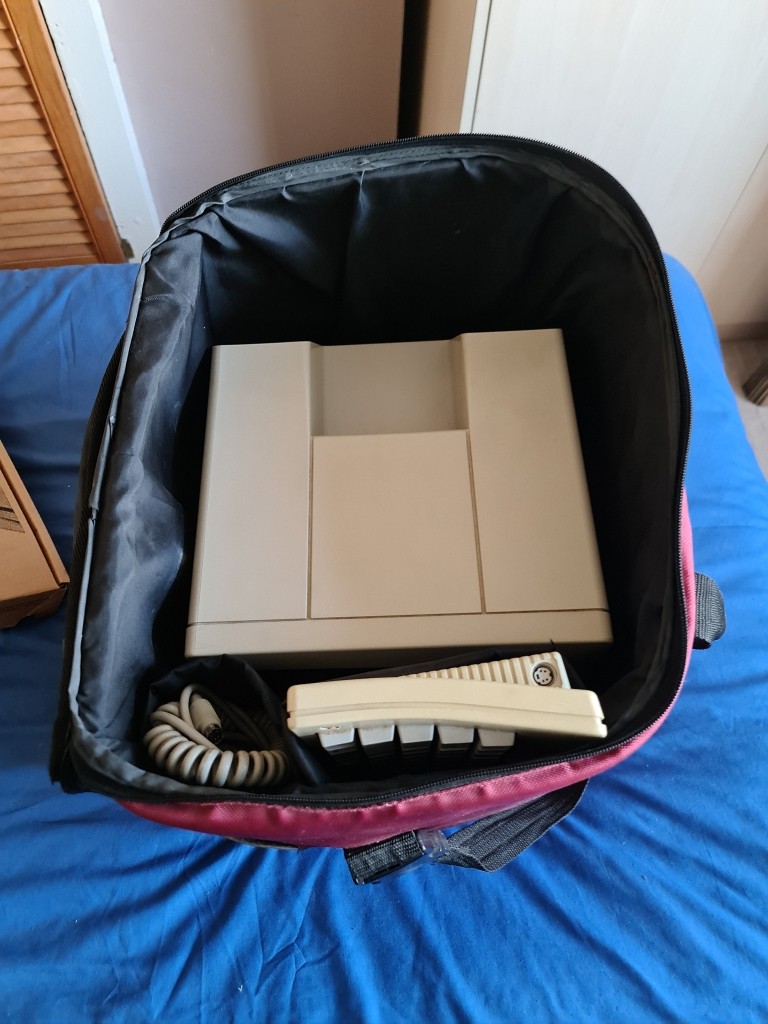

It all fits in nicely, and has several handle options
Battery removal
My Mac Cracker tool arrived, so it's time to open this baby up and check the state of the battery
There are four screws to remove, two are deep within the recesses of the handle, so you need a long T15 Torx screwdriver to access them
The case tends to weld itself together with the heat, but it will separate with some gentle persuasion

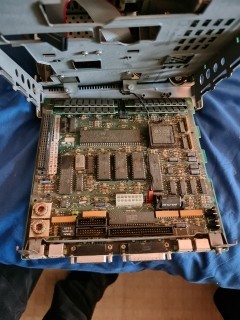

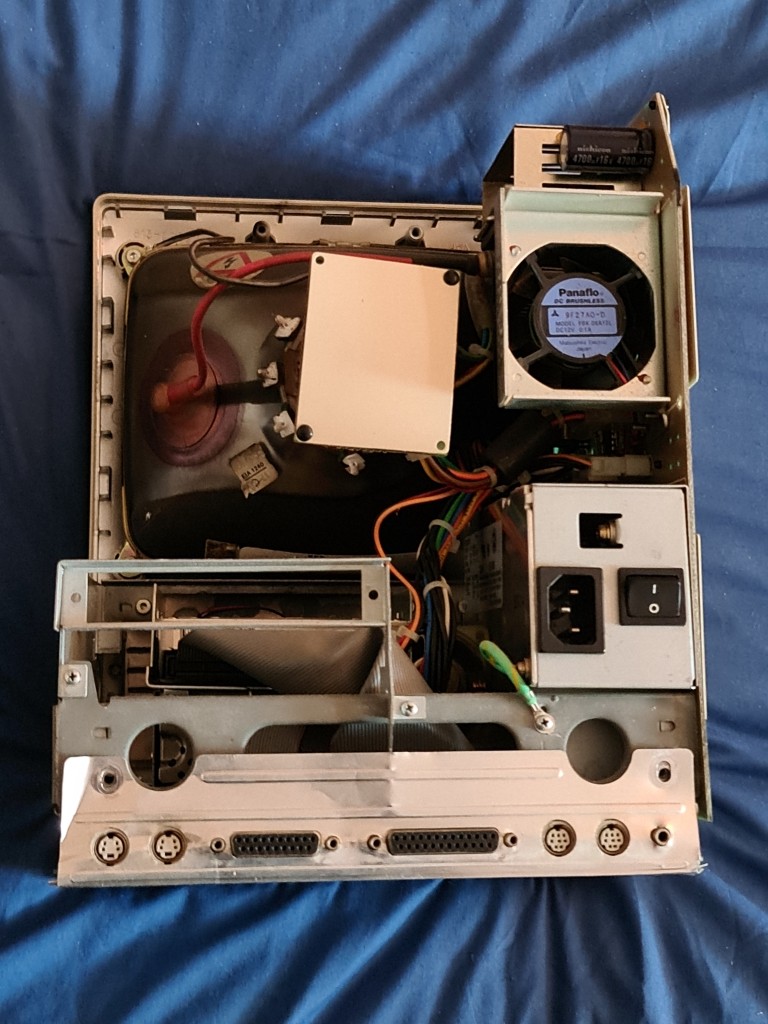

Once you've removed the three connectors (floppy, hard disc, and power/video) the board will slide out and rotate down, the power connector has a clip towards the front of the board which needs squeezing

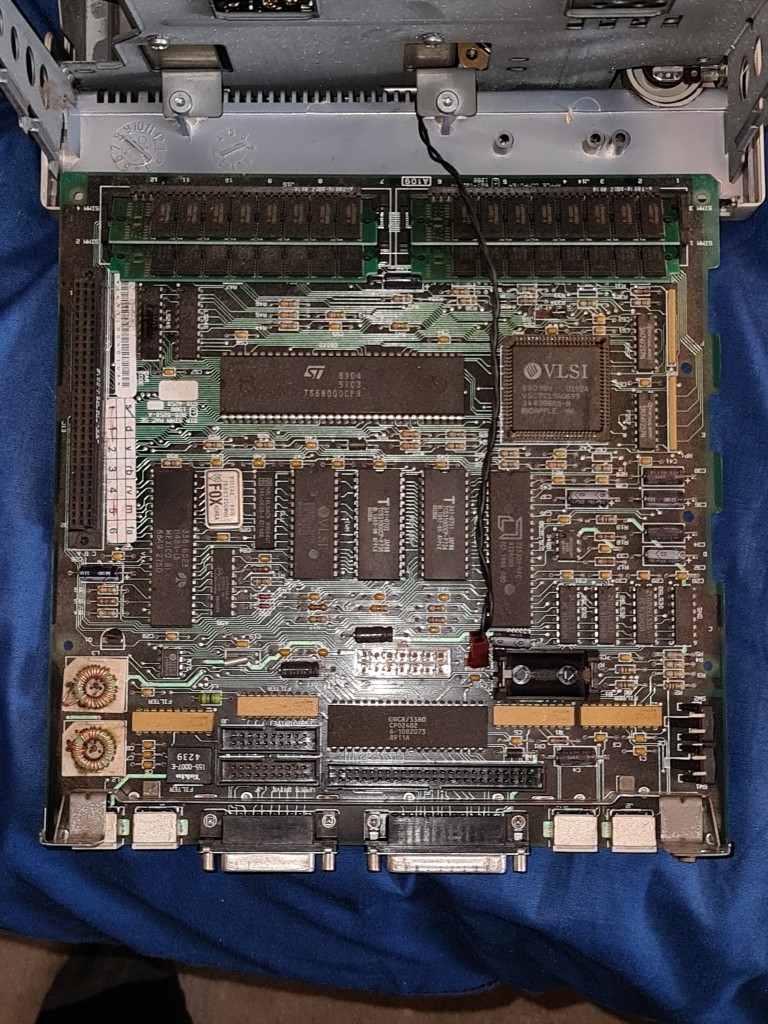

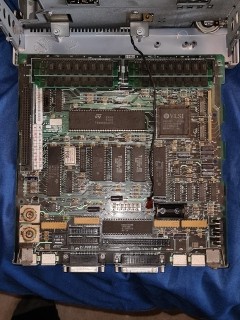

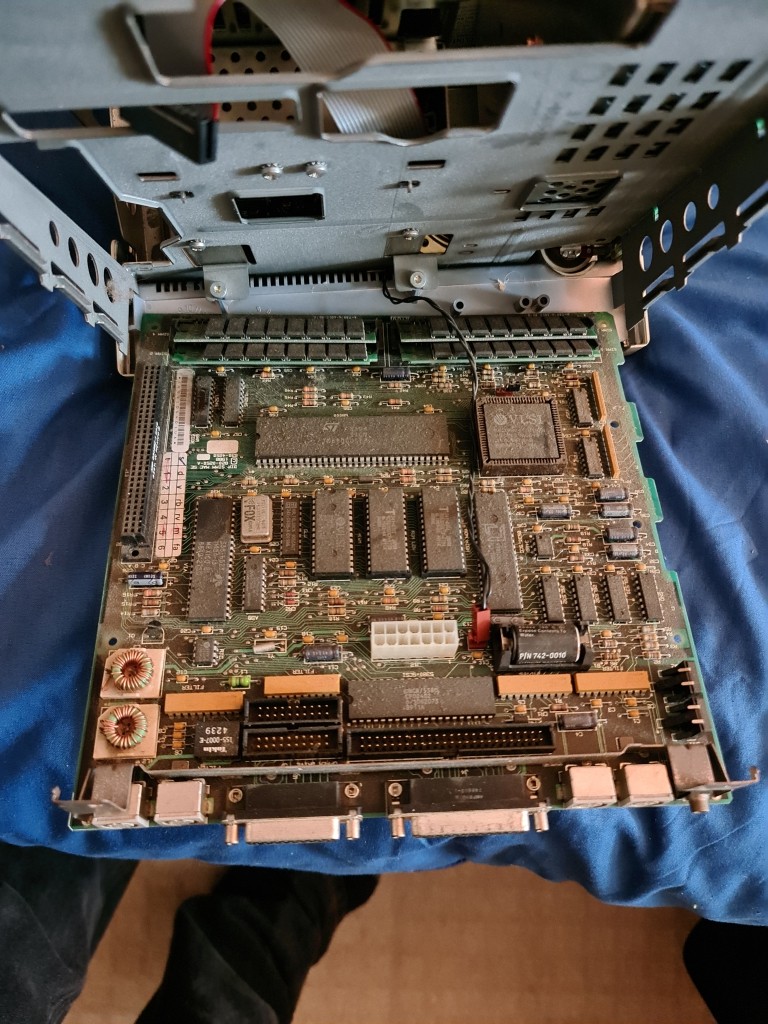

Apart from being dusty, there's no leakage, which is unusual for a machine of this vintage, also, the board looks different to others i've seen
Not many caps at all, I know nothing about Macintosh's, so is this the right board for the machine? Let me know
The machine now doesn't boot, I have a vague memory of some Mac's not booting without a battery fitted

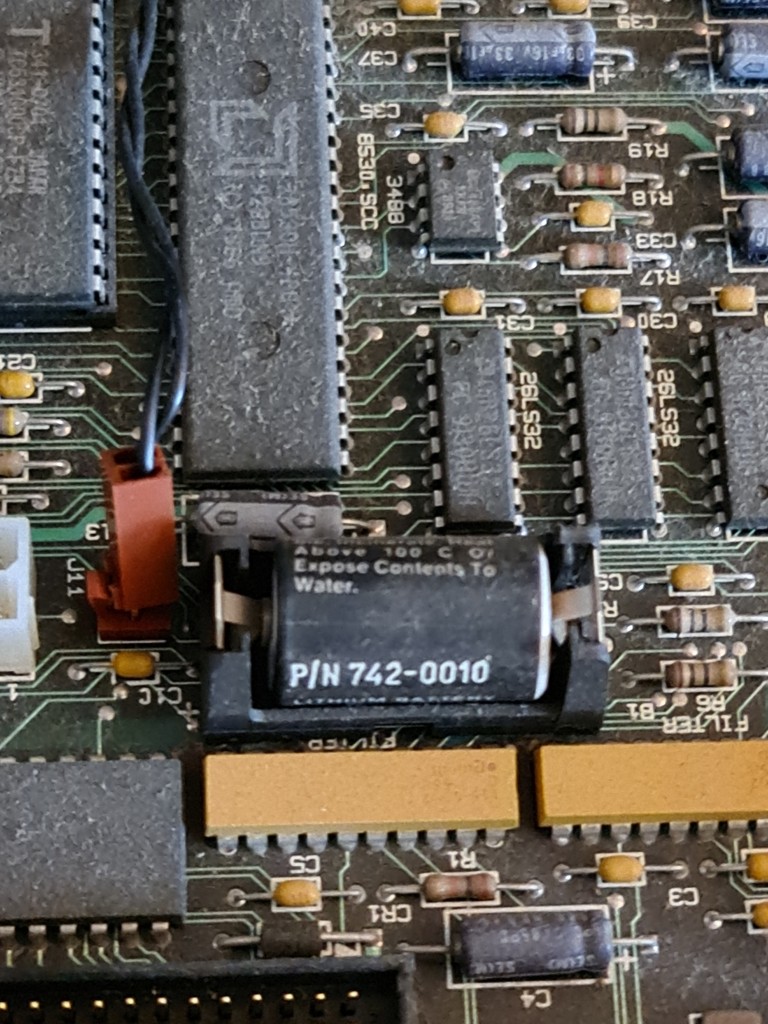

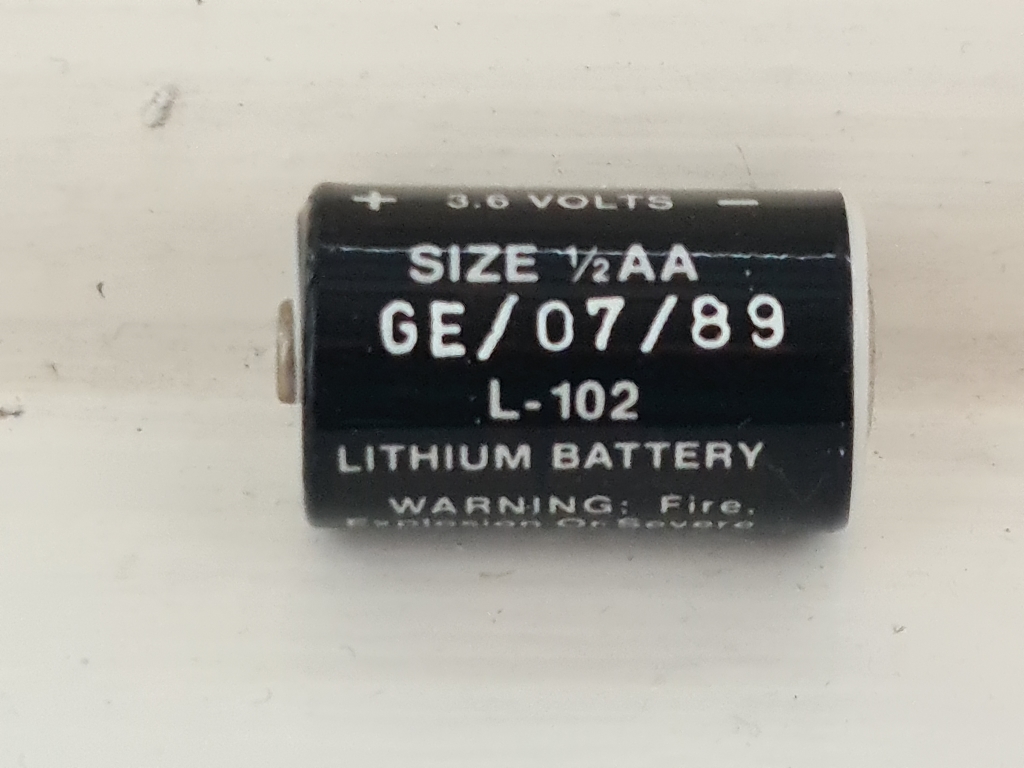

Anyway, here's the unbranded, and still leak-free battery with an expiry date of 1989
